Xaralyn Built-in Profile – XL

Xaralyn Built-in profile XL for 8014LB and LS Bioethanol Burner

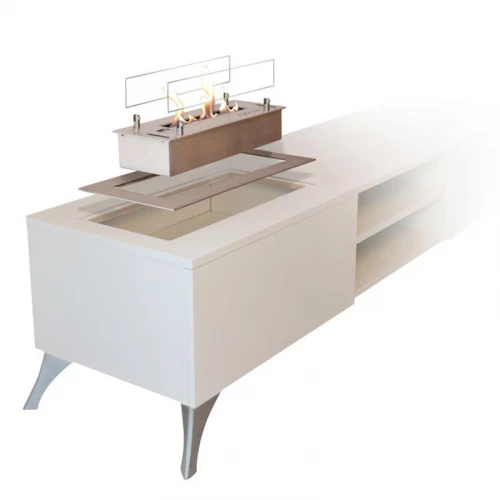

Use this built-in profile to realise your own fireplace project, or use the frame to mount a burner in a table, shelf or similar.

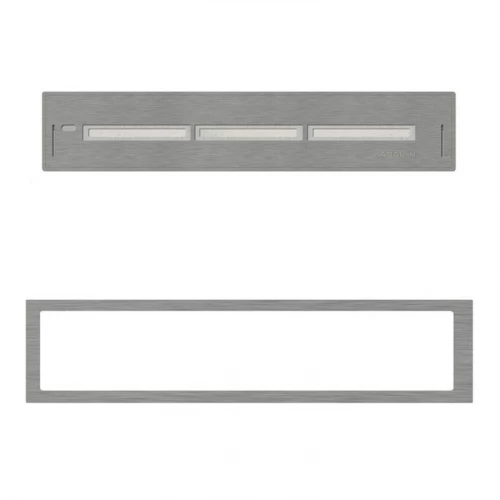

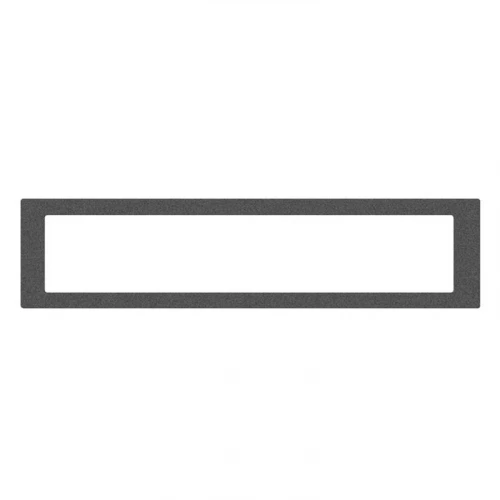

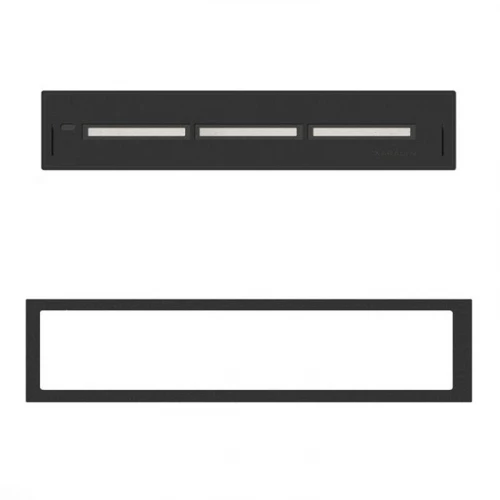

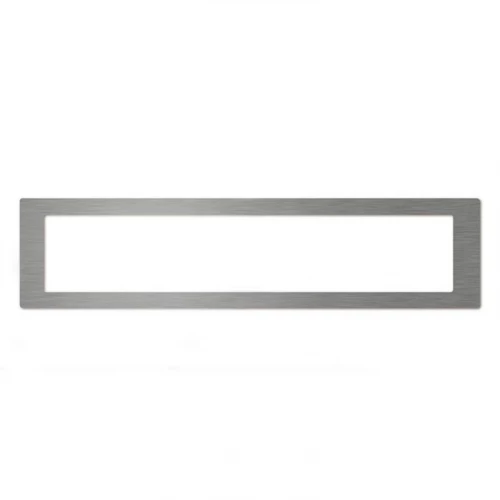

Choose between steel and black to match your burner.

Built-in profile XL is designed for use in combination with Xaralyn bioethanol burners 8014LB (black) and 5820LS (steel). The frame protects your project and furniture from the heat created by the bio fireplace and makes installation easy.

Built-in profile XL is delivered WITHOUT burner!

Installation Instructions

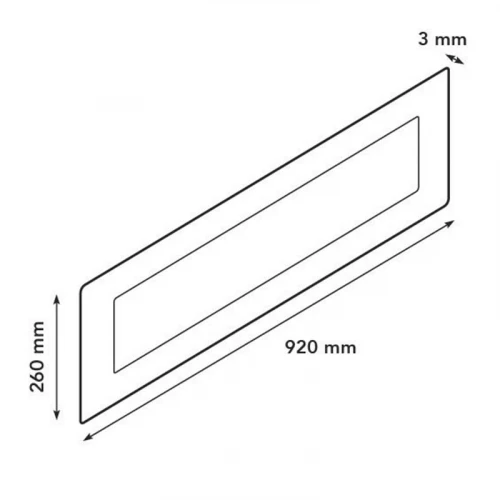

The cut-out for the burner must be at least 5 mm smaller than the recessed profile. So that the recessed profile does not fall through the hole.

You can choose to mill out the recessed profile in the top panel of your design, thereby obtaining a completely flat surface.

Remember to keep enough space in your design for combustible materials, so that the burner will not damage materials around the firebox. Please refer to the Xaralyn manual for further information.
