Forma 800 Tunnel

Planika Forma 800 Tunnel

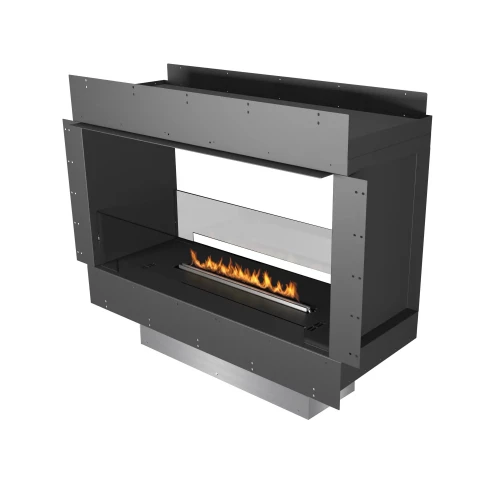

Planika Forma 800 Tunnel is a built-in bioethanol fireplace where the flames can be seen from two opposing sides. A room size of 44 m³ is recommended for this fireplace.

Bioethanol burners

It is possible to choose between two automatic burners for this fireplace:

• FLA3: up to 6 hours of burn time on a full refill
• FLA3+: up to 19 hours of burning time on a full refill

Both burners have an accompanying remote control, as well as the possibility of WiFi and Smart Home System control. Additionally, they contain Planika’s BEV technology, which makes usage cleaner, since the bioethanol becomes vaporised before burning. Furthermore, all Planika products contain a wide range of safety sensors such as a tilt sensor, 3 temperature sensors, an overfill sensor and a CO₂ sensor. All these sensors make Planika’s burners incredibly safe to use.

Materials

Planika Forma 800 Tunnel is made of galvanised steel, which is powder-coated black and tempered glass. This gives the fireplace a neutral and timeless design that will last for many years. The glass also protects the flame from drafts.

Included in delivery

• Automatic bioethanol burner (FLA3 or FLA3+)
• Planika Forma 800 Tunnel frame
• Tempered safety glass
• Brackets for glass
• Remote control

Installation

The installation of Planika Forma is relatively easy if you have a little technical skill and does not require any special certification. You are therefore welcome to carry out the installation yourself.

If you build the fireplace into a flammable wall, you should insulate between the fireplace and the wall. For this, we recommend heat-insulating plates such as Skamotec fire wall boards, fermacell boards or fire plaster. Remember to also draw power to the fireplace, as all automatic fireplaces must be connected to power. Lastly, here are some notes to keep in mind when installing the fireplace:

• The wall above the fireplace must be self-supporting
• Use fireproof material around the fireplace, e.g. Skamotec
• Connection to electricity is required
• Install on a flat surface
