Foco Three 1800

Foco Three 1800 – 3-sided Built-in bioethanol fireplace

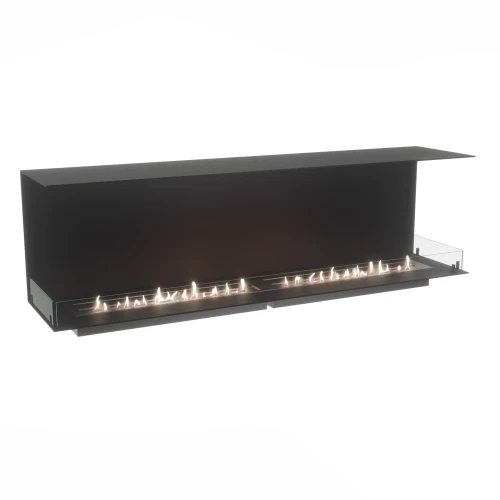

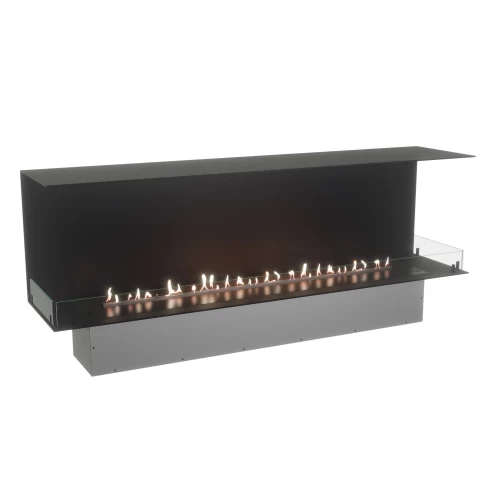

Foco Three 1800 is a 180 cm wide built-in bioethanol fireplace with flames visible from 3 connected sides. The fireplace is part of our fireplace series called Foco, which are affordable bio fireplaces for building into the wall.

A 3-sided built-in bioethanol fireplace like this is often seen built into a “protruding” media wall, on which a television has been mounted. In such an installation, the flames will be visible from the front and both sides. If you plan to use the fireplace in such an installation, we recommend you to read this guide about mounted a TV above a bioethanol fireplace, to avoid damage to the television.

Bioethanol Burner

It is possible to choose from a number of different burners for this Foco Three 1800 built-in bio fireplace.

As standard, it will come with 2x 80 cm manual burners, but it is also possible to choose from a number of different automatic burners.

Burner	Flame length	Heat effect	Burning time	Min. room size	Requires power
2x 80 cm manual burners	2x 60 cm	Max. 8.8 kW	Up to 6.5 hours	Min. 160 m3	No
Planika FLA3 1490	130 cm	Max. 13 kW	Up to 11 hours	Min. 130 m3	Yes
Planika FLA3+ 1490	130 cm	Max. 13 kW	Up to 35 hours	Min. 130 m3	Yes

Materials

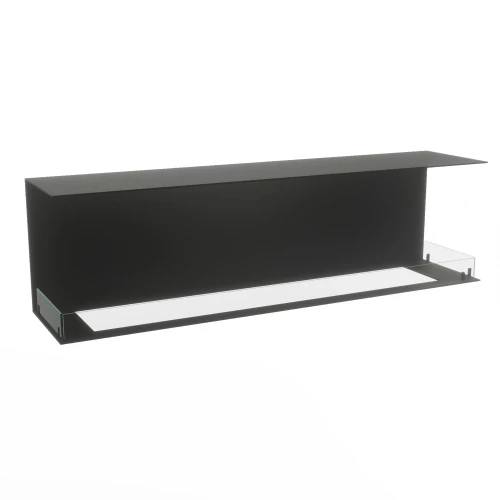

Foco Three is made of 4 mm thick stainless steel, which has been powder-coated black. This gives the bio fireplace a neutral and timeless design that lets the flames be the focus.

In addition, tempered glass is included, which is set up in front of the flame on the three open sides of the fireplace.

Accessories

The Foco fireplaces have a variety of accessories available as a supplemental purchase. These range from general accessories and decorations to exclusive Foco accessories designed to help conceal screws and transition from wall to fireplace.

Included in the package

• Foco Three 1800 frame
• Bioethanol burner
• 3x Tempered glass (Height 10 cm)
• 6x holders for glass

Installation of Foco Three

The installation of Foco Three is relatively easy if you have a little technical skill, and does not require any special certification. You are therefore allowed to carry out the installation yourself.

If you build the fireplace into a combustible wall, e.g. a wooden frame, it is recommended to insulate between the fireplace and the wall. For this, we recommend heat-insulating boards such as Skamotec fire wall boards, fermacell boards or fire plaster.
