Foco One 1800

Foco One 1800 Built-in bioethanol fireplace

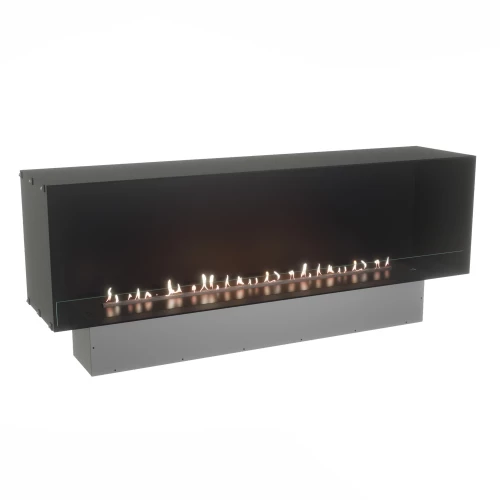

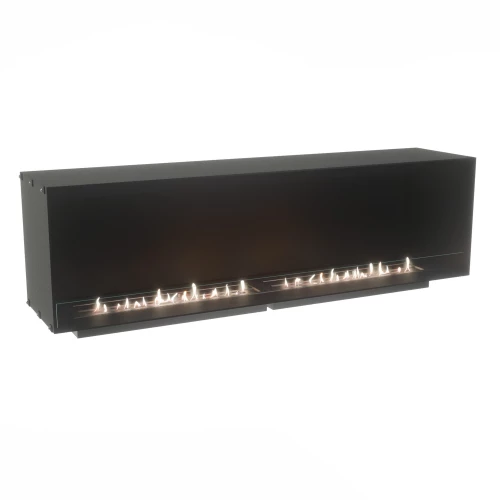

Foco One 1800 is a built-in bio fireplace of 180 cm in width. The bio fireplace has one opening and is therefore intended for installation in walls where you want to be able to see the flames from the front.

This fireplace is often used in TV walls, where you have the fireplace installed under your TV arrangement. If you are going to use the bio fireplace for this purpose, you are recommended to read this guide for installing a bio fireplace under TV.

Bioethanol Burner

Foco One 1800 is available in several different configurations. As standard comes with 2x manual burners of 80 cm in width, but you can also choose to upgrade to one of several automatic burners:

Burner model	Flame length	Heat effect	Burning time	Min. Room size	Requires power
2x 80 cm manual burner	2x 60 cm	2x Max 4.4 kW	Up to 6.5 hours	Min. 160 m3	No
Planika FLA3 1490	130 cm	Max. 13 kW	Up to 11 hours	Min. 130 m3	Yes
Planika FLA3+ 1490	130 cm	Max. 13 kW	Up to 35 hours	Min. 130 m3	Yes

Materials

Foco One is made of 4 mm thick stainless steel, which has been powder-coated black. This gives the fireplace a neutral and timeless design that lets the flames be the focus.

In addition, tempered glass is included, which is set up in front of the flame. In addition to the glass looking nice, it shields the flames from drafts and small gusts of wind and therefore helps to provide a more stable flame. However, it is possible to choose not to mount the glass if you wish to do so.

Accessories

The Foco fireplaces have a variety of accessories available as a supplemental purchase. These range from general accessories and decorations to exclusive Foco accessories designed to help conceal screws and transition from wall to fireplace.



It is included in the package

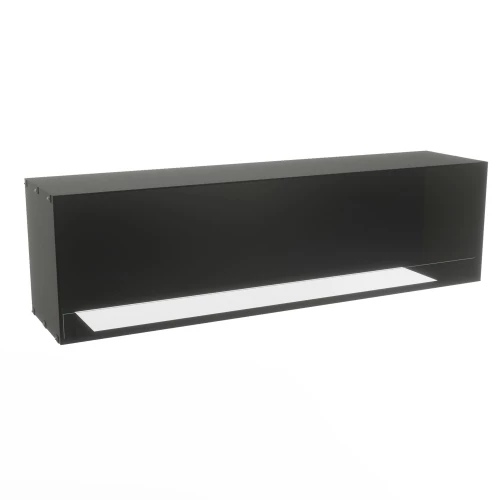

• Foco One 1800 frame
• Bioethanol burner
• 1x tempered glass (Height 10 cm)
• 2x holders for glasses

Foco One installation

The installation of Foco One is relatively easy if you have a little technical skill and does not require any special certification. You are therefore allowed to carry out the installation yourself.

If you build the fireplace into a flammable wall, it is recommended that you insulate between the fireplace and the wall. For this, we recommend heat-insulating boards such as Skamotec fire wall boards, fermacell boards or fire plaster.

NOTE: If an automatic burner has been selected, it must be connected to electricity for the fireplace to work.
