Foco One 1200

Foco One 1200 – single-sided bio fireplace for installation

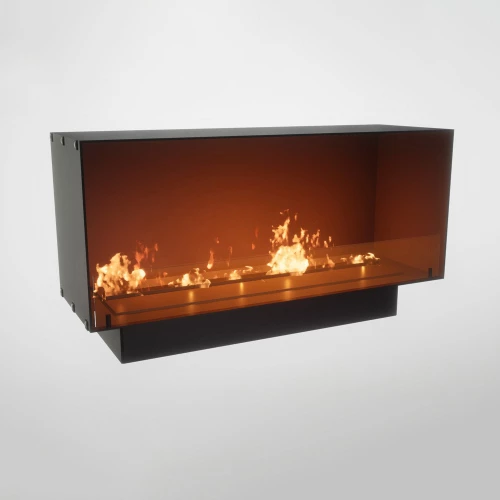

Foco One 1200 is a 1-sided bioethanol fireplace for installation in the wall, that allows you to see the flames from one side.

Bioethanol Burner

It is possible to choose between 5 different bioethanol fire vessels for Foco One:

Burner	Superior 100 cm	PrimeFire 990	Denver Basic F3 – 920	FLA 3 – 990	FLA 3+ – 990
Flame length	80 cm	80 cm	70 cm	80 cm	80 cm
Heat output	3,3 – 6,5 kW	4,6 – 7,0 kW	1,6 – 4,3 kW	4,6 – 7,0 kW	4,6 – 7,0 kW
Control	Manual	Remote control	Remote control	Remote control + App	Remote control + App
Flame level	Manual adjustable	2	3	6	6
Capacity	5 litres	5,5 litres	5,8 litres	5,5 litres	17,2 litres
Burn time	6 hours	10 hours	20,8 hours	10 hours	31 hours
Electricity	No	Yes	Yes	Yes	Yes

The automatic burners allow you to switch the fire vessel on and off with a remote control. They also have several extra safety functions that can automatically switch off the fire vessel. But be aware that the automatic burners must be connected to a power source.

Materials

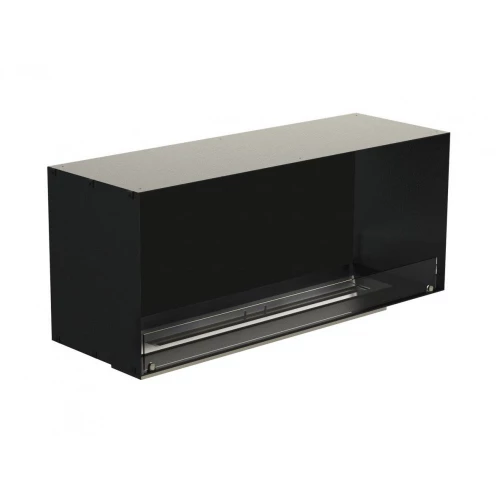

Foco One is made of 4 mm thick stainless steel, which has been powder-coated black. This gives the bio fireplace a neutral and timeless design that lets the flames be in focus. In addition, tempered glass is included, which is set up in front of the flame. In addition to the glass looking nice, it shields the flames from drafts and small gusts of wind and therefore helps to give a more stable flame. However, it is possible to choose not to mount the glass if you wish.

Accessories

The Foco fireplaces have a variety of accessories available as a supplemental purchase. These range from general accessories and decorations to exclusive Foco accessories designed to help conceal screws and transition from wall to fireplace.

The package includes:

• Bio ethanol firebox (Manual or automatic)
• Foco One frame in five parts
• Screws and nuts to assemble the frame
• 1x tempered glass (Height 10 cm)
• 2x holders for glass

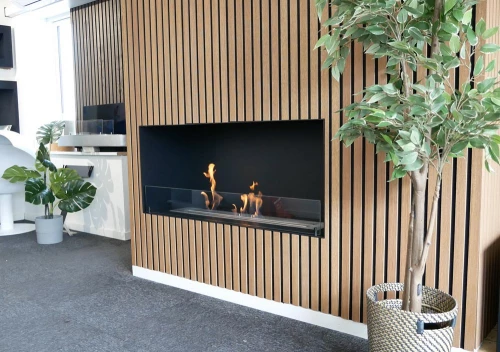

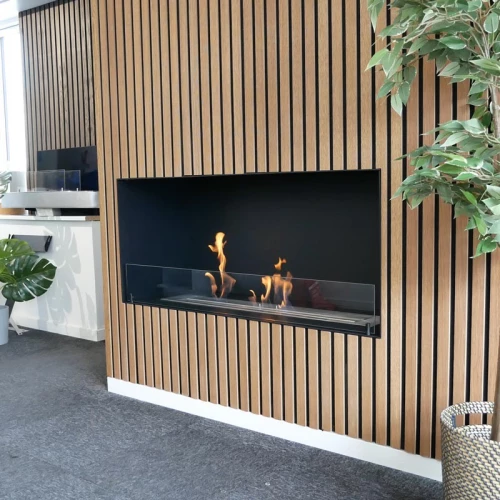

Installing Foco One

The installation of Foco One is relatively easy if you have a little technical ingenuity, and does not require any special certification. You can, therefore, carry out the installation yourself. If you build the fireplace into a flammable wall, you should heat insulate between the fireplace and the wall. For this, we recommend heat-insulating boards such as Skamotec firewall plates , fermacell boards, or fire plaster.

It can be a little difficult to get a perfect edge around the fireplace when built into an existing wall. We have therefore made an outer frame which is placed on the outside of the fireplace, to hide any imperfections. Note, however, that this is an acquisition and must be actively selected.
