Foco Corner Left 1200

Foco Corner left 1200 – Bio Fireplace Insert

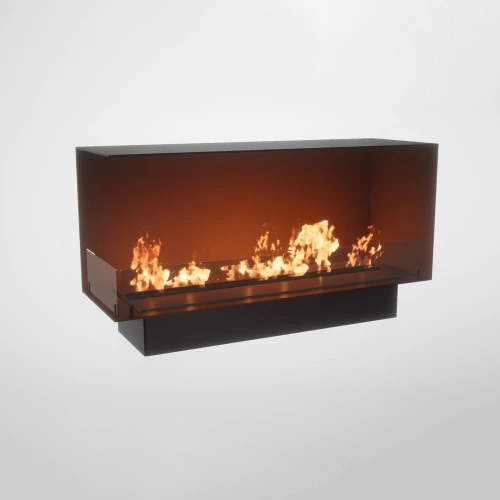

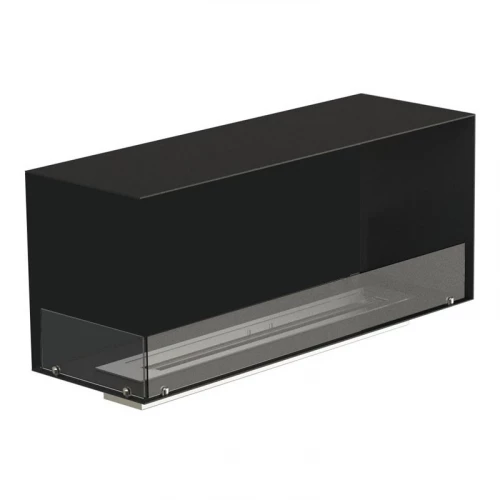

Foco Corner Left is a bioethanol fireplace insert designed to be built into the corner of a wall, where one will be able to see the flames from two connected sides. This model of Foco Corner Left is 120 cm wide.

Bioethanol Burner

It’s possible to choose between 4 different bioethanol burners for Foco Corner Left 1200:

Burner	Superior 100 cm	PrimeFire 990	Denver Basic F3 – 920	FLA 3 – 990	FLA 3+ – 990
Flame length	80 cm	80 cm	70 cm	80 cm	80 cm
Heat output	3,3 – 6,5 kW	4,6 – 7,0 kW	1,6 – 4,3 kW	4,6 – 7,0 kW	4,6 – 7,0 kW
Control	Manual	Remote control	Remote control	Remote control + App	Remote control + App
Flame level	Manual adjustable	2	3	6	6
Capacity	5 litres	5,5 litres	5,8 litres	5,5 litres	17,2 litres
Burn time	6 hours	10 hours	20,8 hours	10 hours	31 hours
Electricity	No	Yes	Yes	Yes	Yes

The automatic burners allow you to switch the bioethanol burner on and off with a remote control. They also have several extra safety functions that can automatically switch off the burner. However, be aware that the automatic fire vessels must be connected to power.

Materials

Foco Corner Left is made of 4 mm thick stainless steel, which has been powder coated black. This gives the bioethanol fireplace a neutral and timeless design that lets the flames be in focus.

Furthermore, tempered glass is included, which is mounted around the flame. In addition to looking great, the glass shields the flames from draft and small gusts of wind, which helps to provide a more stable flame. However, it is possible to choose not to mount the glass if desired.

Included in the package

• Bioethanol burner (Manual or Automatic)
• Foco Corner Left frame in four parts
• Screws and nuts to assemble the frame
• 2x tempered glass (height 10 cm)
• 4x glass holders

Installation of Foco Corner Left 1200

The installation of Foco Corner Left is relatively easy if you have a little bit of technical skills and the installation does not require any special certification. You can, therefore, carry out the installation yourself.

If you build the fireplace into a flammable wall, you should heat-insulate between the fireplace and the wall. For this, we recommend heat-insulating plates such as Skamotec Fire Boards, Fermacell sheets or fire plaster.
