Exterior Frame For Foco 600

Exterior frame for Foco 600 and Foco Two 600 bioethanol fireplaces

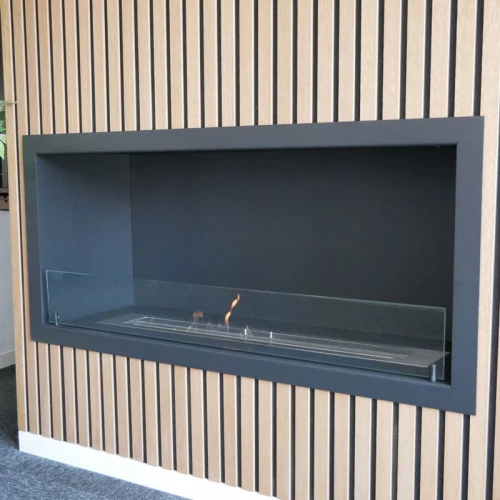

The outer frame is mounted on the Foco 600 frame and provides a frame around the built-in fireplace.

If you build your Foco One or Foco Two bio fireplace into an existing wall, it can be difficult to create a perfect finish around the frame. With this exterior frame, you can easily hide all imperfections.

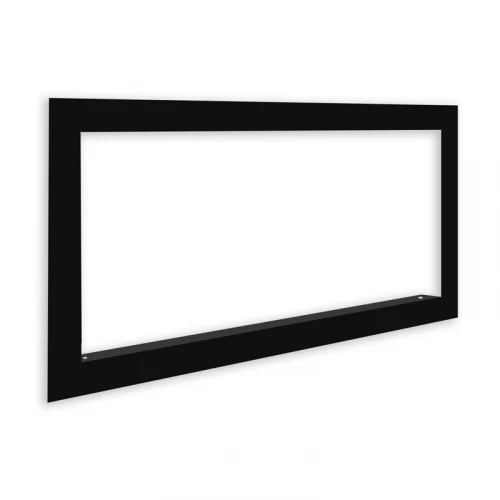

The outer frame is made from the same steel and with the same powder coating as the Foco built-in frame. The outer frame itself has a width of 5 cm all the way around and has a thickness of 4 mm.

Mounting of the outer frame

Assembly requires the following tools:

• Drill
• Metal Drill

Procedure:

1. Remove the safety glass and glass holders from the built-in frame
2. Slide the exterior frame into the inner frame.
3. The mounting holes in the bottom of the outer frame and the inner frame should now fit together.

4. Attach the glass holders through both the exterior and the built-in frame.

5. At the top of the inner frame, drill two holes that match the holes in the outer frame.

6. Now screw the outer frame through the holes drilled in the inner frame and also in the wall.

This exterior frame fits these Foco models:

• Foco One 600 Slim

• Foco Two 600 Slim
